Brand Name : | TBC LED |
Model Number : | P2.5 |
Certification : | FCC, CE, ROHS |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 1000 sqm per month |
Delivery Time : | 15 working days |

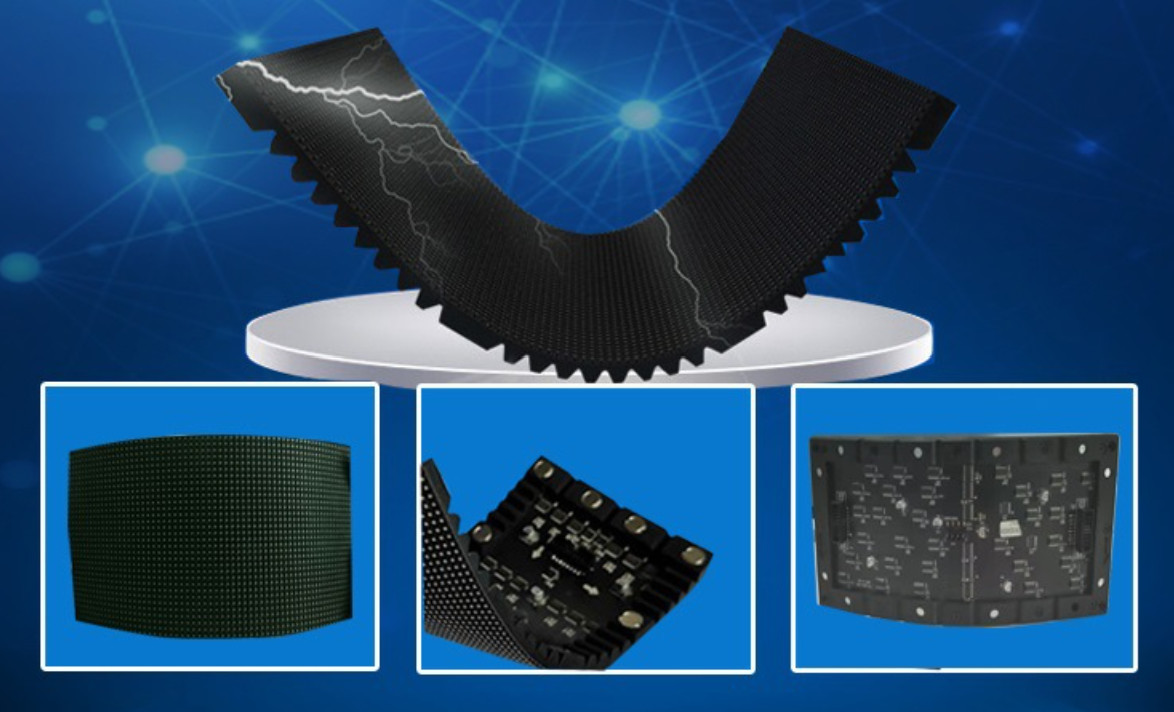

Flexible P1.86mm Modules Creative LED Display for Building Facades
with High Brightness and High Definition for Indoor
LED Flexible module has good ductility, can be formed arbitrarily,
can be lifted, installed and suspended. Advanced digital video
processing, distributed scanning technology, 360-degree
high-definition display, modular design, constant current static
drive, high brightness true color output.
It has good quality, can be repaired at a single point, and the
maintenance cost is low. High brightness, low dead lamp rate,
energy saving;The splicing error between modules can be controlled
within plus or minus 0.1mm, good flatness, soft feel.
Specifications of Flexible Modules
Indoor Specifications | Mini1.86 | Mini2 | Mini2.5 |
Pixel Pitch | 1.86mm | 2mm | 2.5mm |
Density | 289050dots/m2 | 262144dots/m2 | 160000dots/m2 |
Led Type | SMD1515 | SMD1515 | SMD2121 |
Panel Size | 320mmx 160mm | 320mmx 160mm | 320mmx 160mm |
Weight | 1 KG | 1KG | 1KG |
Drive Method | 1/43 Scan | 1/32 Scan | 1/25 Scan |
Gray scale | 65536 | 65536 | 65536 |
Brightness | 800 nits | 800 nits | 800 nits |
Refresh | 3840Hz | 3840Hz | 3840Hz |
Input Voltage | AC110V/220V ±10% | AC110V/220V ±10% | AC110V/220V ±10% |
Max Power Consumption | 800W | 800W | 800W |
Average Power Consumption | 300W | 300W | 300W |
Maintenance Way | Front and Rear | Front and Rear | Front and Rear |
Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours |
Advantages of Flexible Modules
1.Flexibility And Stability
LED Flexible module using high-quality flexible material circuit
board, with strong flexibility, can be customized bending Angle, to
adapt to a variety of complex shape installation needs.The use of
dual-latch energy-saving IC and high-quality anti-glare black LED
lights improves the display quality and stability.
2.Ease Of Installation
The installation method of the soft module is mostly based on the
magnetic column suction, which is convenient and quick to install
and easy to finalize. The box connecting cable is fast to the joint
connection, firm and reliable, eliminating the complicated
installation steps.
3.Ductility And Molding Ability
LED Flexible module can be arbitrary modeling, such as the
cylindrical screen with high brush performance, can be lifted,
mounted, hung, etc., to maximize the requirements of the scene.
Advanced digital video processing technology and distributed
scanning technology, 360-degree high-definition display, modular
design, constant current static drive, high-light true color
output.
4.High Quality And Low Maintenance Costs
High quality single point maintenance, low maintenance cost; High
brightness, low dead lamp rate, energy saving.
Seamless splicing, can control the splicing error between modules
within plus or minus 0.1mm, can be made into any shape according to
user needs.
5.Energy saving and environmental protection
Flexible module have low energy consumption and use efficient LED
technology, saving energy and reducing environmental impact.
Applications of Flexible Modules
1. Hotel lobby
Flexible modules are often used for the decoration of hotel
lobbies, such as cylindrical LED soft modules. They not only serve
a decorative purpose but can also be used as advertising media
screens, clock screens, interest rate screens, etc.
2. Large supermarkets
Flexible module can be mounted on the surface of columns, solving
the problem of columns affecting appearance while achieving various
commercial promotion purposes such as media publicity, discount
promotions, and new product launches.
3. Nightclubs and bars
In concert venues such as nightclubs, bars, Pub bars, and clubs,
flexible modules can be designed to create various products like
LED bar screens, S-shaped Pub bar wavy leds, nightclubs screens,
fan-shaped display screens, and flowing electronic screens. While
making full use of the venue, they can achieve the desired sound,
light, and shadow effects.
![]() |
