P10mm Outdoor LED Billboard The Power of Large Size and High-Impact
Advertising for Busy Transportation Hubs and High-End Business
Districts
Specifications of Outdoor LED Billboard
| Model name | P5.7 | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 5.7 | 6.667 | 8 | 10 |
| Pixel Density (dot/m2) | 30625 | 22500 | 15625 | 10000 |
| LED sealing Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 84*56 | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | ≥6500 | ≥6500 | ≥6500 | ≥6500 |
| Grey Scale(bit) | ≥16 | ≥16 | ≥16 | ≥16 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 500 | 500 | 500 | 500 |
| Average Cabinet Power Consumption (W) | 150 | 150 | 150 | 150 |
| Cabinet Size (mm * mm) | 960*960*75 | 960*960*75 | 960*960*75 | 960*960*75 |
| Cabinet Weight (Kg) | 28KG | 28KG | 28KG | 28KG |
| Horizontal Viewing Angle (Deg) | 160 |
| Vertical Viewing Angle (Deg) | 140 |
| Input Voltage (V) | 110-220V/200-240V |
| Working Temperature (℃) | -20~ +40 |
| Working humidity(RH) | 10%~90% |
| Storage temperature range | -40~ +80 |
| Operation humidity (RH): | 10%~90% |
| Waterproof Level | IP68 |
| Working life | 10,0000H |
| Working Environment | Outdoor Fixed Installation |
Advantages of Outdoor LED Billboard
1. Strong visual impact
Large size, motion, sound and picture integration of LED
advertising can stimulate the audience's senses in an all-round
way, effectively convey information to guide consumption. In the
face of overwhelming advertising, the limited memory space of the
audience and the infinity of information transmission make
attention gradually become a scarce resource, so the attention
economy has become the largest size to test the effect of
advertising.
2. Wide coverage
Outdoor LED Billboard are generally installed in high-end business
districts and transportation hubs with high pedestrian density.
Through frequent communication with consumers, stimulate consumers'
strong desire to buy.
3. Upgrade the city
Government agencies use LED advertising to release some government
information and city propaganda videos, which can beautify the
image of the city and improve the grade and taste of the city. LED
display is now widely used in stadiums, venue centers, advertising,
transportation, etc., it reflects the economic, cultural and social
life of a city.

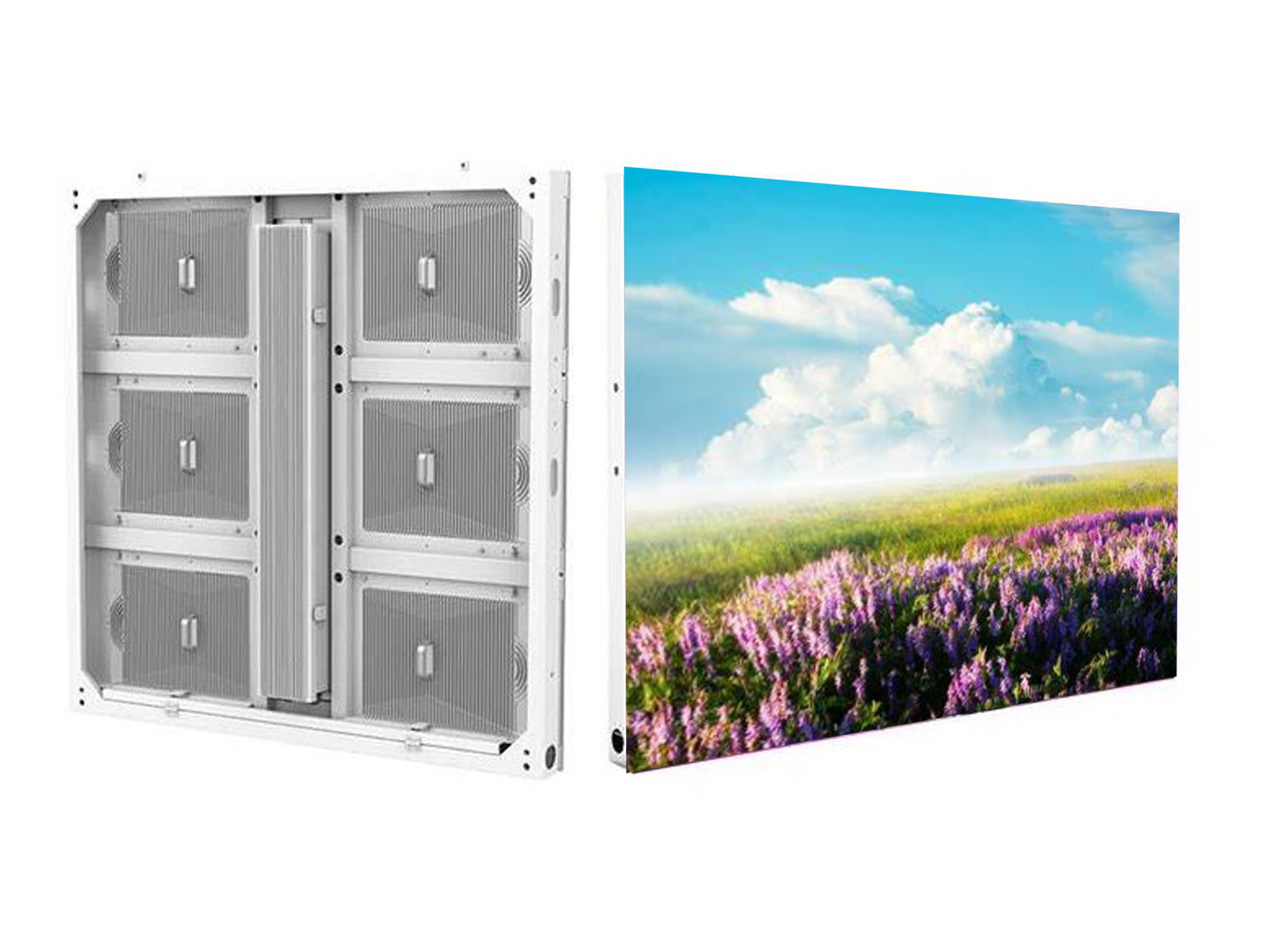

Features of Outdoor LED Billboard
1. Energy saving LED Display
S Series Energy Saving LED Display is TBC latest Common Cathode
Aluminum Display with size
of 960*960mm, high IP68 waterproof level. Unique panel design with
480*320mm size. Ultra low heat and power consumption, saving and
excellent visual experience
2. High brightness outdoor LED Screen
1)Compared with the traditional SMD technology, 5000~6500 nits
brightness is not easy to be seen in the strong sunlight
2)LED attenuation: brightness 5%-9% reduction every year. after 5
years S Series still has around 7000nits
3)Calibration: After 2~3 years usage, after calibration, there is
still strong brightness
3.High protective performance
Aluminum material, high temperature durability, fast
heat-dissipation. The whole product can Reach 5VB fireproofing
level.
IP68 Water proof connectors(between modules), Drain hole is
designed at the bottom of the panel to prevent ponding. the high
standard of Waterproofing Can be immersed in the specified water
pressure for a long time.
4.Safety harness design
Each LED module is equipped with a safety harness to prevent the
module from falling and hitting people.
Cable-less design Power and data cables are hidden at the bottom of
the panel Hard Connection BTB connector replace data and power
cables, high stability
Application of Outdoor LED Billboard

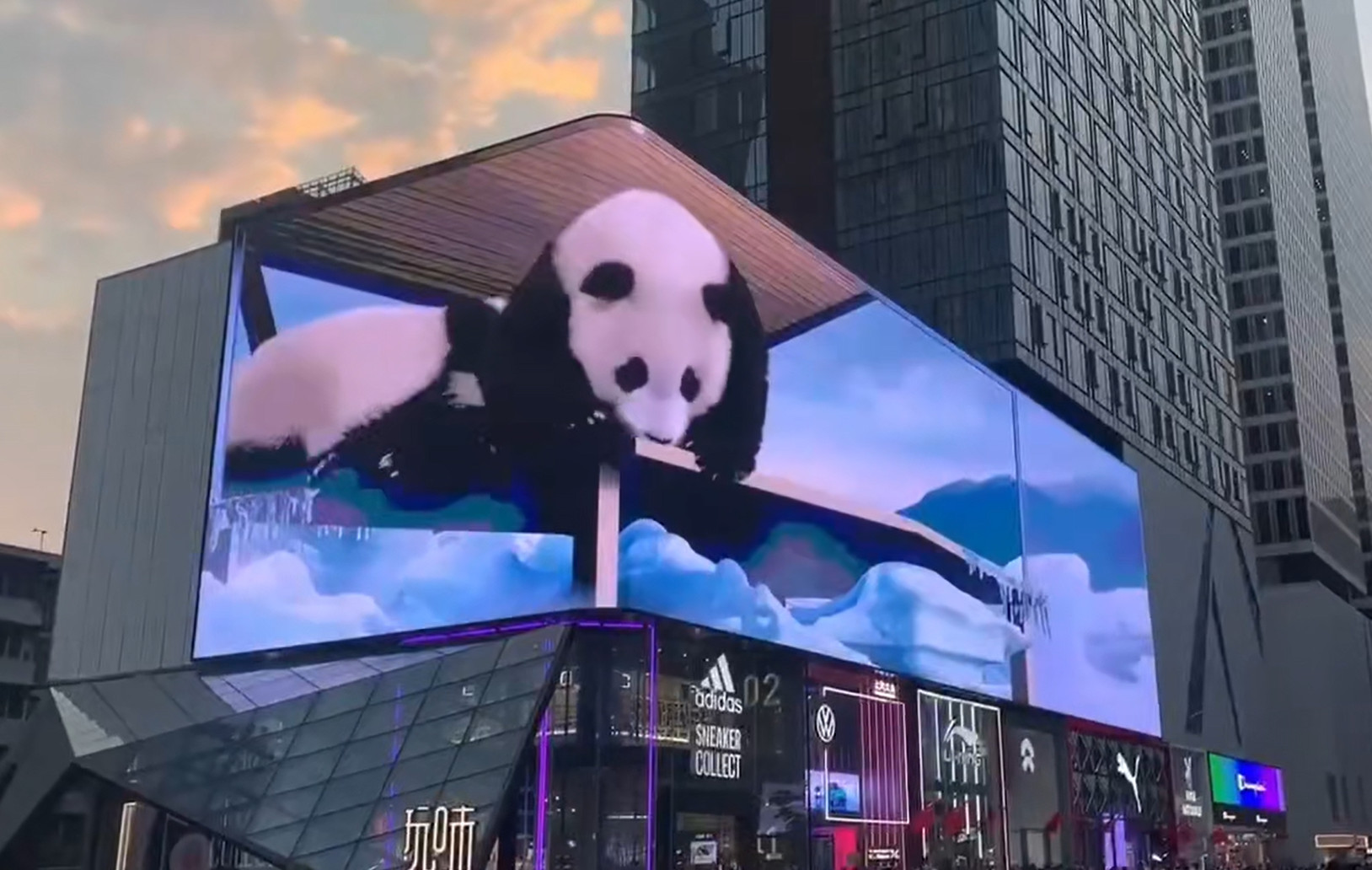

1. Commercial advertising and brand display
Outdoor LED Billboard can be set up in high-frequency exposure
scenes such as the exterior walls of shopping malls, pedestrian
streets, airports and high-speed railway stations to play dynamic
promotional advertisements, new product displays, etc.,
continuously attracting the attention of people.
2. Transportation hubs and public information release
Outdoor LED Billboard are usually set up at stations, docks and
airports to display real-time flight and train information, traffic
guidance, emergency notifications, etc., ensuring the timely
transmission of information.
3. Sports events and cultural activities
Nowadays, many sports events, concerts and outdoor activities often
use Outdoor LED Billboard to live broadcast the progress of the
events, stage backgrounds or display close-ups of people.
Wide-angle displays can cover the entire audience.
4. Industrial and public service sectors
Outdoor LED Billboard are also widely used in industrial plants,
schools, hospitals, parks, squares, emergency shelters, etc. They
are used to release climate information, publicize information, and
issue announcements. They are dust-resistant, anti-interference,
and not afraid of wind and rain erosion, supporting long-term
continuous operation.
