Ultra HD Indoor P1.25 GOB Soft Module 3840Hz Refresh LED Module
320x160mm
Ⅰ. LED Soft Module Specification:
| GOB P1.25 |
| Pixel Pitch | 1.25mm |
| Pixel Configuration | SMD1515 |
| Pixel Density | 640,000 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 |
| Module Resolution | 256 x 128 |
| Weight per Cabinet | 1kg |
| Average Power Consumption | 300 W /Sqm |
| Max Power Consumption | 800 W /Sqm |
| Brightness | 800 nits |
| Refresh Rate | 3,840Hz |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front and rear |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/43 Scan |
Ⅱ. Key Characteristics of the Ultra HD P1.25 GOB Soft Module
① Ultra-Fine Pixel Pitch (P1.25):
Delivers exceptionally high resolution and sharp image quality for
close viewing distances.
Creates a near-seamless, detailed visual experience ideal for
high-end indoor applications.
Provides superior clarity for intricate graphics and fine text.
② High Refresh Rate (3840Hz):
Ensures completely smooth, flicker-free video playback and motion
graphics.
Eliminates visual artifacts like line-scanning for cameras and
reduces eye strain for viewers.
Delivers superior performance in professional settings, especially
under camera capture.
③ GOB Soft Module Construction:
Features Glue-on-Board (GOB) encapsulation, protecting the LEDs
from moisture, dust, and impact.

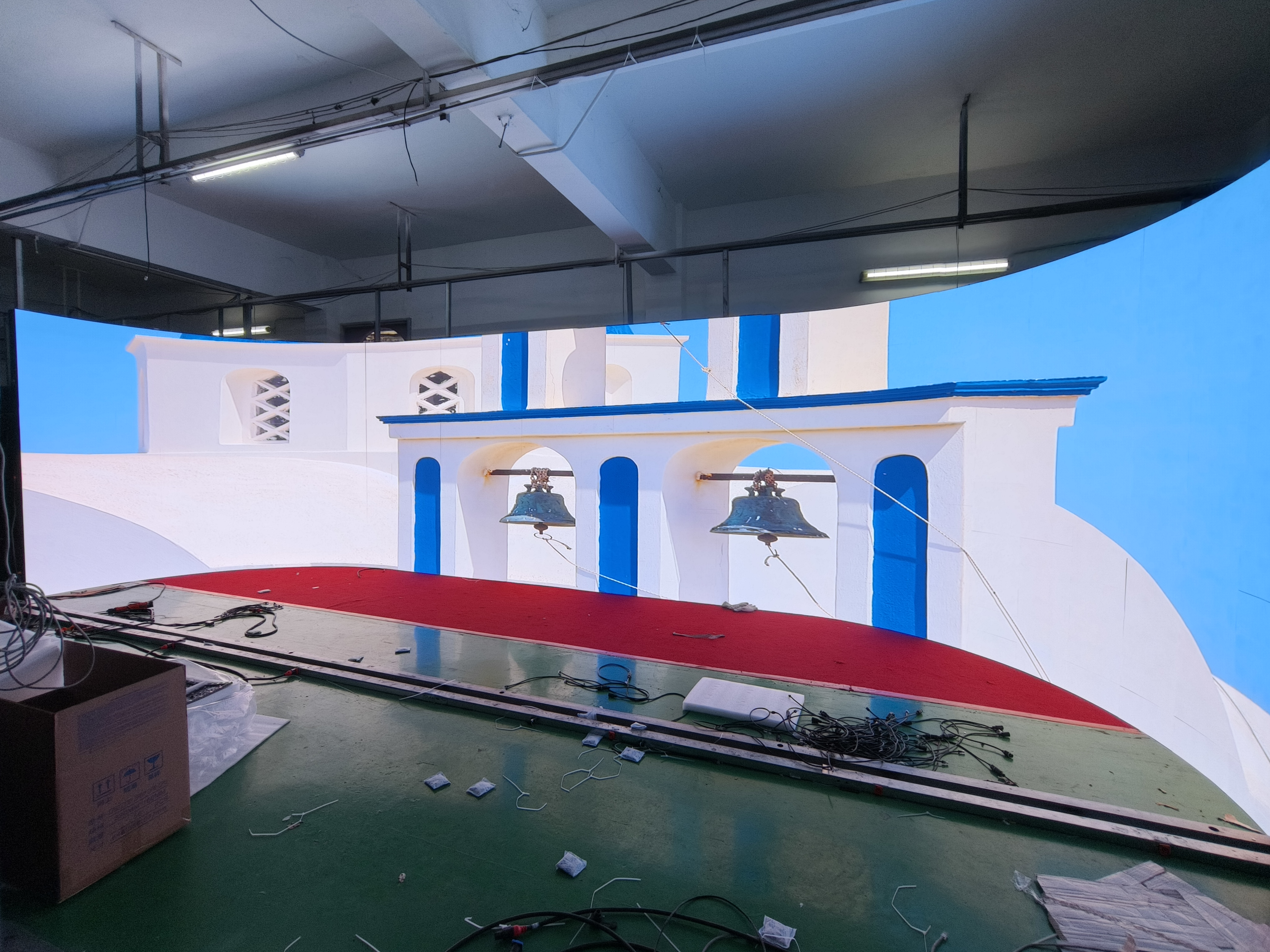

Offers a lightweight, slightly flexible module for easier handling
and curved installations.
Provides enhanced durability and reliability compared to standard
exposed LED modules.
Ⅲ. LED Soft Module Installation Precautions:
1. The operator must wear anti-static gloves when installing the
modules, and be careful when picking up the modules.
2. No violent knocking,slapping,tearing or bendingagain and again
of the modules.When gently plugging or
unplugging the power and signal cables,avoid using excessive force
to break the power and signal blocks and
damage the PcB circuitry.
3. Installation structure requirements: It is not recommended to
use galvanized iron square tubes,which not only
cannot guarantee the flatness of the whole screen module but also
can be easily damaged during the installation
process; it is recommended to use sheet metal structure cabinets
and carry out the powder coating processing
before installation.
4. No splashing water on the display body or modules, the display
should be kept away from air conditioners,
pools and otherequipmentor things,that may generate water
vapors,and the air conditioning vent facing the
display is strictly prohibited.
5. Do not use wet rags or hard objects to clean the dust on the
surface of the module, it is recommended to use
anti-static soft brushes for cleaning.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all LEDs, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
