P1.5mm Small Pitch Outdoor LED Billboard Ideal High-resolution
Outdoor Advertising Enhancing Visibility Effectively
Specifications of Small Pitch Outdoor LED Billboard
| Pixel Pitch (mm) | P1.25 | P1.5 | P1.875 |
| Pixel Density (dot/m2) | 640,000 | 444,444 | 284,444 |
| Module Size (mm * mm) | 240*270 | 240*270 | 240*270 |

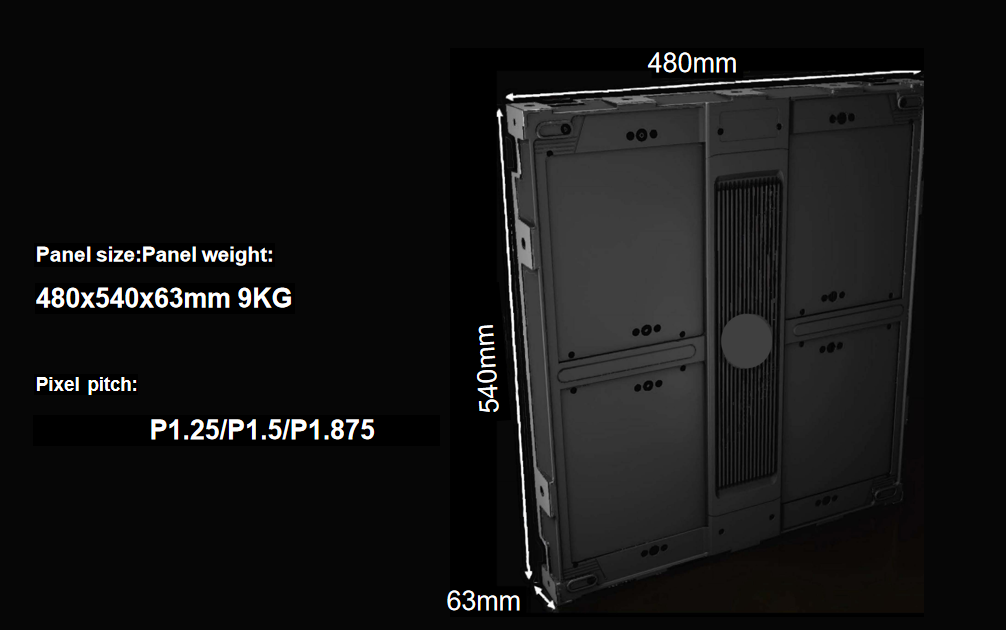

| Panel Size (mm * mm) | 480*540 | 480*540 | 480*540 |
| Panel Resolution (PX* PX) | 384*432 | 320*360 | 256*288 |
| Panel weight | 9kg | 9kg | 9kg |
| Brightness (cd/m2) | ≥4000 | ≥4000 | ≥4000 |
| Grey Scale(bit) | ≥14 | ≥14 | ≥14 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 720 | 720 | 720 |
| Average Cabinet Power Consumption (W) | 240 | 240 | 240 |
| Viewing Angle (Deg) | HV:160° |
| Working Voltage (V) | 110V,200V,60Hz |
| Working Temperature (℃) | -20~ +50 |
| Working humidity(RH) | 10%~90% |
| Waterproof Level | IP65 |
| Working life | 10,0000H |
| Working Environment | Outdoor Fixed Installation |
Features of Small Pitch Outdoor LED Billboard
1. Lighter and thinner
Adopts a thinner and lighter design and supports full front
maintenance and installation
2. X-GOB TECHNOLOGY
We use X-GOB to coat the module surface,which can e fectively
resist the impact of outdoor environments,while also improving the
screen's resistance to shattering,waterproofing,shock resistance,UV
resistance,dustproofing,eye protection,and antistatic
properties.This not only greatly extends the screen's lifespan,but
also makes the screen more durable and adaptable to various
environmental conditions.

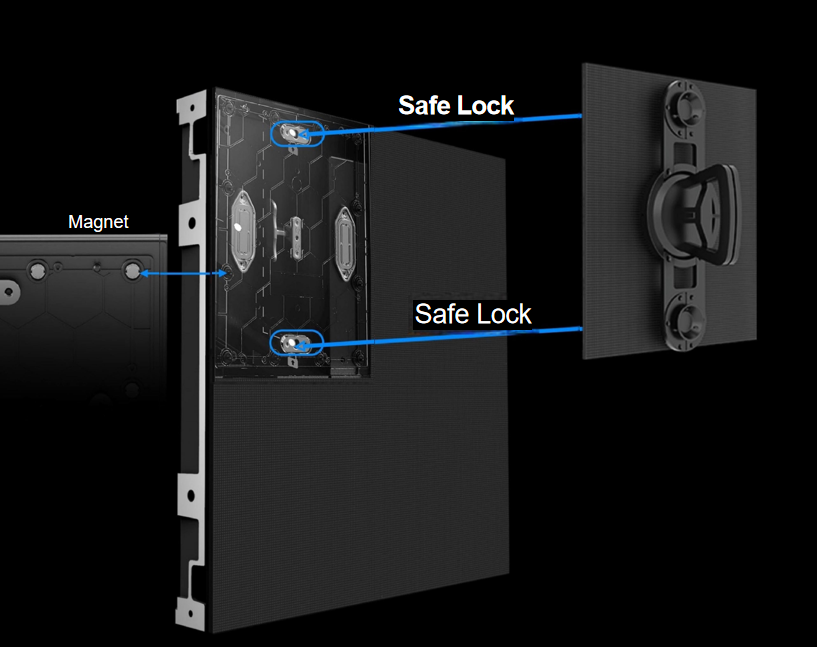

3. S-latch for quick front-access
The safety lock requires a special suction cup to remove the screen
module to prevent the module from falling off due to vibration or
rough handling
4.High brightness
Even in bright outdoor environments,our high brightness screen
ensures clear visibility,allowing you to enjoy an uninterrupted
visual feast outdoors.It is especially suitable for outdoor
commercial displays.
Application of Small Pitch Outdoor LED Billboard
1.Sports venue
Outdoor small-pitch LED display screens can be applied in sports
venues to show real-time game information, sponsor advertisements,
audience interactions and other content, enhancing the viewing
experience and increasing the event atmosphere.
2.Traffic guidance
At transportation hubs, stations, airports and other places, Small
Pitch Outdoor LED Billboard can be used to show traffic
information, guide routes, etc., and improve traffic efficiency.
3.Urban landscape
Small Pitch Outdoor LED Billboard can be used in urban landscape
projects to create urban night scenes and enhance the modernity and
technological feel of the city.
