SMD2121 HD 4K Indoor P2.5 LED Video Wall With Die Cast Aluminum
Cabinet 640x480mm

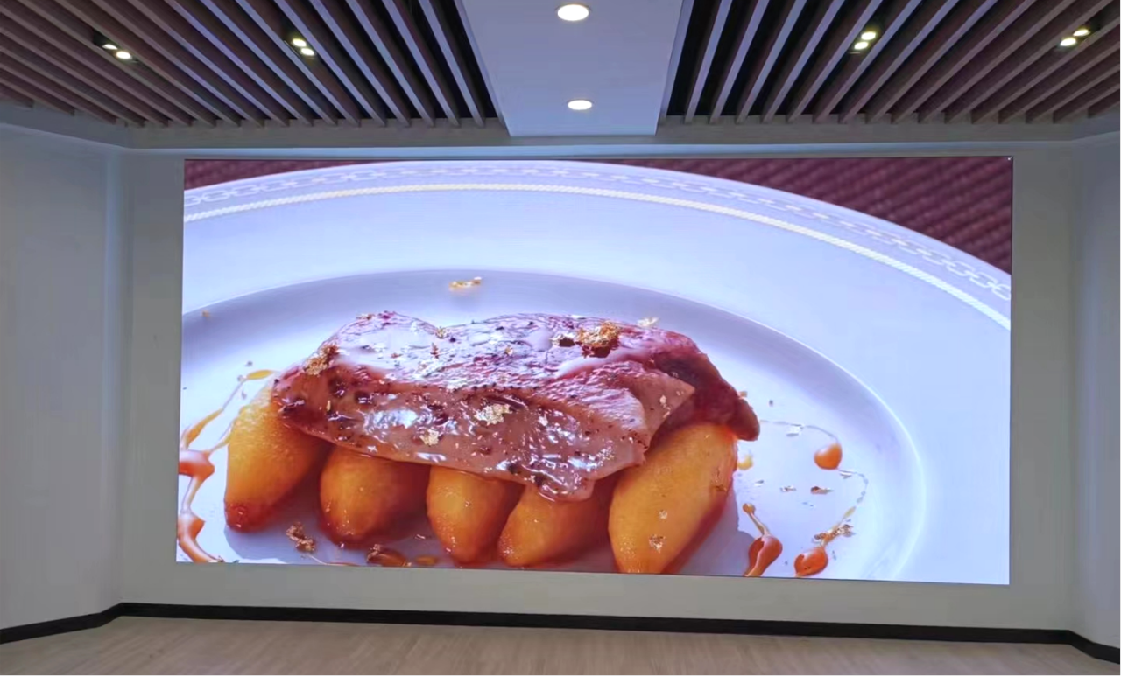

Application Of Indoor Fixed LED Video Wall
Quick detail Of Indoor P2 Fixed LED Video Screen
1. Pixel Pitch: 2mm;
2. Nation Star or Kinglight SMD LEDs, high contrast and high
reliability;
3. Greyscale: 16bits;
4. Cabinet size: 768x768mm or 960x960mm Steel Wall Mount Cabinet;
5. Service type: Magnetic front service;
6. PSU: MEANWELL or G energy brand;
7. Refresh Rate: 1920-3840Hz;
8. Ingress Rate: IP43 indoor use and magnetic front service;
9. Quality Certificate:CE, RoHS,FCC, ETL;
10. Brightness:>800-1000cd/sqm.
Specification Of Indoor Fixed LED Screen
| E 2.5 | |
| Pixel Pitch | 2.5mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 160,000 pixels/m2 |
Module Dimensions(W x H) (mm) | 320 x 160 |
| Panel Dimensions (mm) | 640×480/960 x 960 |
| Module Resolution | 128×64 |
| Cabinet Resolution | 256×192/384×384 |
| Panel Material | Die cast aluminum |
| Weight per Cabinet | 7.2KG |
| Digital Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm |
| Max Power Consumption | 650 W /Sqm |
| Brightness | >8,00 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating (Front/Rear) | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan |
Description Of Indoor Fixed LED Screen
TBC LED E Series indoor fixed led screen include P2.5mm, 3mm and
P4mm Features are:
1, Die-cast aluminum wall mount cabinet, can be installed to the
wall directly
2, High refresh rate 3840Hz adjustable
3, Magnetic modules, Front and Rear Maintenance via Magnets
4, NOVA Star or Colorlight system free to choose
5, Easy to use and installation
Our Services
1. 15 Years professional led display manufacturer;
2. Short delivery time: 5-15 working days, adjustable according to
customer request;
3. Wholesale price;
4. OEM and ODM service;
5. Customizable product upon request.
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
