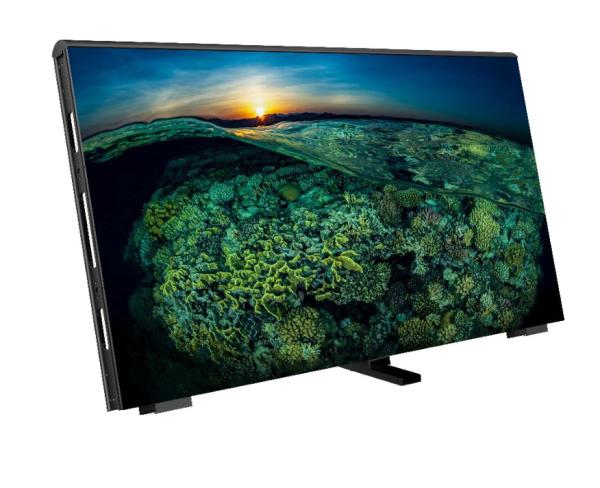

High Energy Efficiency QS Series LED Perimeter Display for Stadium
with Wide Viewing Angle
Features
1. High refresh, low light and high gray, the selection of high
refresh rate display can ensure the smooth continuity of
large-scale sports events live picture, the human eye is more
comfortable and natural, meet the requirements of different
occasions live shooting, take pictures without water ripples.
2. Screen protection performance is high, for the stadium, LED
screen heat dissipation is very important. Especially in the
changeable climate of the outdoor screen, high flame retardant
level and protection level is necessary.
3. The overall brightness contrast and energy efficiency is high,
for the LED screen of the stadium, brightness, contrast, energy
saving effect need to be considered comprehensively, LED display
products with high energy efficiency design are guaranteed in
safety, stability and service life.
4. The viewing Angle is wide, which can ensure that the audience in
different directions of the stadium has a good viewing experience.
Advantages
Classifications
1. Live video wall
The live video wall is composed of many LED displays, including
ceiling installation, bending, independent, etc., with a wide Angle
of view, high image clarity advantages, both can display the whole
image, can also be divided into different Windows, in order to
ensure that the audience in each position will not miss every
wonderful shot of the live event.
2. Stadium fence screen
The stadium stands are generally equipped with fences, the
application of fence display, not only can replace the fence fence
in the stadium, but also can display more content on the display
screen, in order to fully meet the display needs of football,
basketball and handball and other events.
3. Center suspension LED display
Center suspension (hoisting) LED display on the one hand can be
used to centrally display game information, game scores, timing
information, players' technical statistics and so on. On the other
hand, it can be divided into multiple areas to display a variety of
statistical information, charts, animations, live broadcasts or
rebroadcasts, and can also segment, manage, publish, update and so
on the screen of the entire network within the system to interact
with the audience, thus highlighting the atmosphere of the scene.
Parameters
| P6.25 | P8.33 | P10 |
| SMD type | SMD2727 | SMD2727 | SMD2727 |
| Physical density(dots/sqm) | 25600 | 14400 | 10000 |
| Module resolution | 64X48 | 48X36 | 40X30 |
| Module dimension | 400X300 | 400X300 | 400X300 |
| Module quantity(W×H) | 4 X 3 | 4 X 3 | 4 X 3 |
| Panel resolution(W×H) | 256 X 144 | 192 X 108 | 160 X 90 |
| Panel size(mm) | 1600 X 900 | 1600 X 900 | 1600 X 900 |
| Flatness(mm) | ≤0.015 | ≤0.015 | ≤0.015 |
| Maintenance mode | Front & Rear | Front & Rear | Front & Rear |
| Brightness(nits) | 7000 | 7000 | 7000 |
| Color temperature(K) | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional |
| Grey scale | 65536 | 65536 | 65536 |
| Viewing angle(V/H) | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 |
| Frame-changing frequently | 50/60Hz | 50/60Hz | 50/60Hz |
| Drive mode | Constant current 1/6 scale | Constant current 1/3 scale | Constant current 1/2 scale |
| Refresh rate | 3840 | 3840 | 3840 |
| Max power consumption(W/m2) | 600-800 | 600-800 | 600-800 |
| Avg. power consumption(W/m2) | 100-200 | 100-200 | 100-200 |
| Electric power requirements | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz |
