High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance

Topbright Creation Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance from wholesalers

    Buy cheap High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance from wholesalers
    • Buy cheap High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance from wholesalers
    • Buy cheap High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance from wholesalers
    • Buy cheap High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance from wholesalers

    High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance

    Ask Lasest Price
    Brand Name : TBC LED
    Model Number : P10.42
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 sqm per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    High Level P10.42 Outdoor LED Advertising Billboard SMD2727 Aluminum Cabinet Front and Rear Maintenance

    Outdoor LED Advertising Billboard T Seies P10.42 Ultra Light Weight 22.5KG


    1. Specification Of Outdoor LED Advertising Screen

    Product Parameters

    ModeT10.42mm
    LEDs1R1G1B
    LED typeSMD2727
    Pixel pitch10.42mm
    Module sizeW500×H250mm
    Unit resolution47×23 dots
    Resolution9,216dots/㎡
    Brightness≥6000nit
    Weight22.5KG/㎡
    Max consumption650W/㎡
    Adv consumption100-200W/㎡
    Viewing angleH140°/V160°
    Protection levelIP65
    Thickness83mm

    Heat dissipation

    Convective heat dissipation
    Wind dissipaionLevel 12
    Power supplyPower supply with PFC
    InstallationFast install
    Fire safety10S/unit
    Fire resistanceFull VO grade
    ServiceFront,Back
    Control modesteady state
    Color temperature1000-18500K
    Refresh rate3840Hz
    Working temperature-20℃ to 60℃
    Storage temperature-20℃ to 60℃
    Life time≥100,000 hours
    Input voltageAC110-220V
    Grey grade16bit
    Seismic capability10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

    2. Outdoor LED Advertising Billboard T SeiesQuick details:


    1. Pixel Pitch: 10.42mm
    2. SMD2727 LED, high brightness≥6000nits and durable for outdoor use;
    3. Greyscale: 16bits;
    4. Cabinet size: 1000x1000×83mm Aluminum Cabinet
    5. Recommended Viewing Distance: 11m.

    6. Cabinet Material: Die-casting aluminum, 22.5kg per Panel

    7. Refresh Rate: 3840Hz

    8. Ingress Rate: IP65 Outdoor Standard Connectors;

    9. Quality Certificate:CE, RoHS,FCC, ETL

    10. Brightness: ≤10000nit


    3. TBC LED T Series outdoor led advertising billboards Features are:

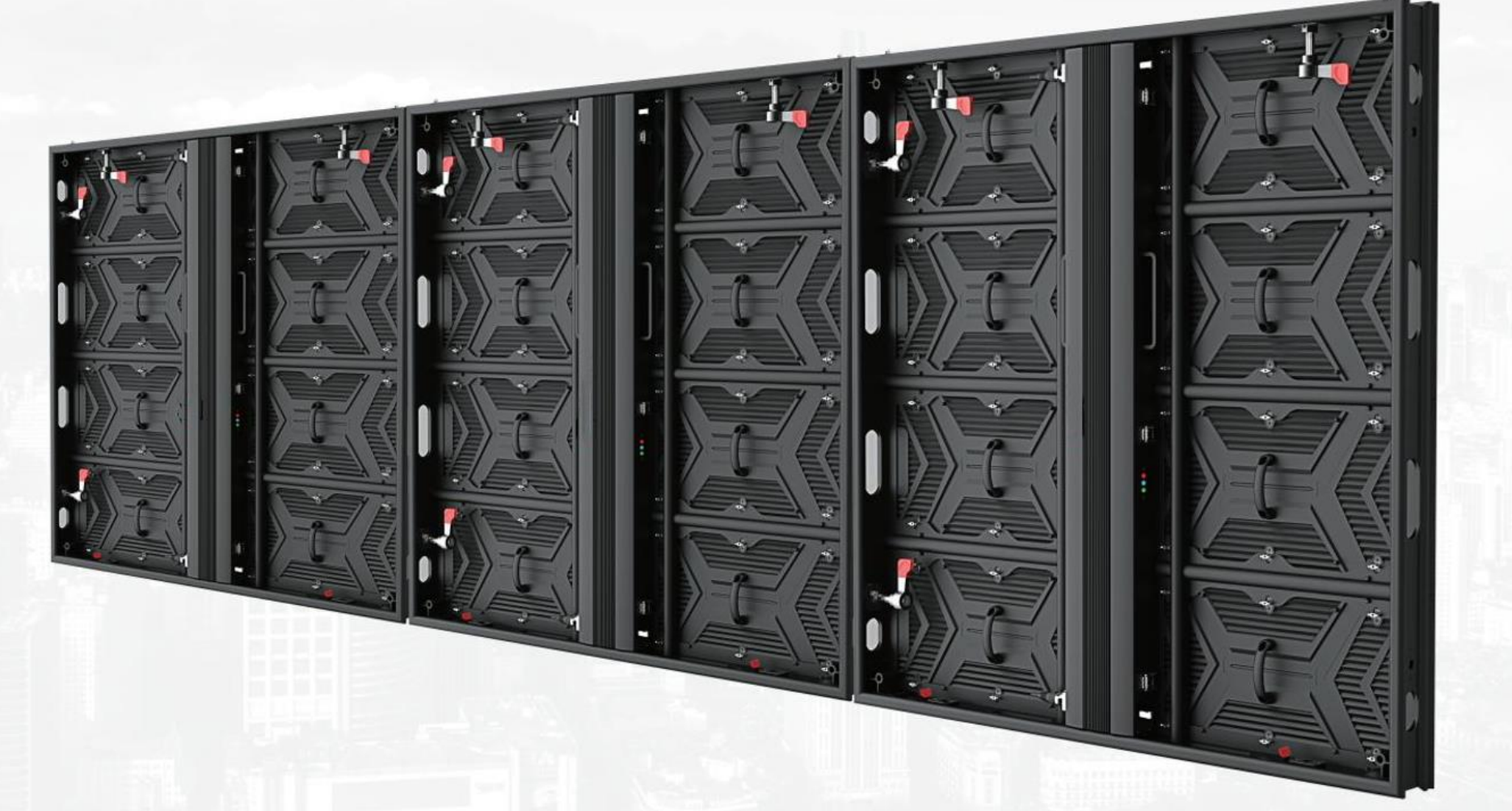

    1. Front and Rear Maintenance for LED Cabinets.


    Front and rear maintenance allows for easier access to components, reducing downtime for repairs. It offers flexibility for installation in tight spaces and streamlines maintenance procedures. This approach improves efficiency and enhances the overall performance and longevity of the LED display.



    2. The cabinet is light. The panel 1000×1000×83mm weighs only 22.5KG.


    Lightweight cabinets are easier to handle and install, reducing labor costs and installation time. They allow for more flexible mounting options and can be used in a wider range of environments. A lighter design contributes to lower transportation costs and minimizes structural load on mounting surfaces.


    3. Dustproof and waterproof grade: IP65.


    With an IP65 rating, these cabinets are fully protected against dust and water, making them ideal for outdoor environments. Their durable construction ensures resistance to harsh weather conditions, extending the lifespan of the display. Designed for outdoor use, they maintain optimal performance and visibility even in direct sunlight and extreme temperatures.


    4. High Brightness Outdoor LED Screen, brightness Options of 6000-10000 Nits.


    Higher brightness levels enhance image clarity and color vibrancy, making content more engaging and effective for outdoor advertising. This flexibility allows users to customize the display's performance based on specific applications and environments, ultimately improving viewer experience.


    Our Services


    1. 10 Years professional led display manufacturer

    2. Short delivery time: 5-15 working days, adjustable according to customer request
    3. Wholesale price

    4. OEM and ODM service
    5. Customizable product upon request


    FAQ


    Q1. How does the service work?

    A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

    Q2. What installation options do we have?

    A: Wall mounting with metal structures.

    Q3. Do you have any MOQ limit for led screen order?

    A: Low MOQ, modules or complete screen order are all welcome.

    Q4. What's the shipping method?

    A: Air freight, sea and train transport according to different region.

    Q5. What's the payment method?

    A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

    Q6. How do you control the production quality?

    A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

    The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

    Q7: How does warranty work?

    A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
