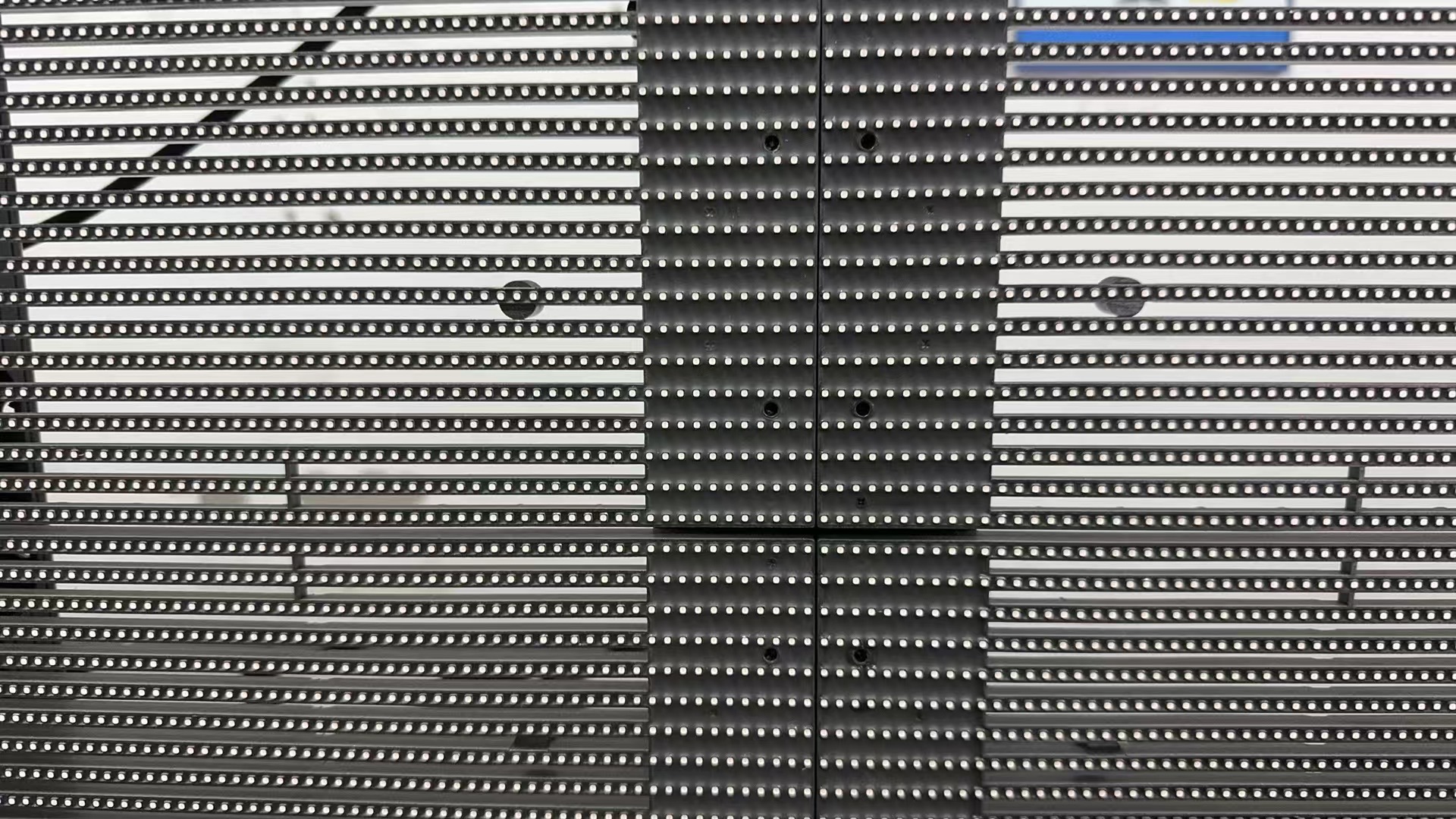

Outdoor Rental LED Display Transpatrent LED P10.42-10.42mm High
Brightness SMD2727 3840Hz
Quick details:
1. Pixel Pitch: 10.42-10.42mm
2. SMD2727, high brightness 6000nits and high refresh rate 3840Hz
3. Greyscale: 16bits
4. Cabinet size: 1000×500mm/1000×1000mm
5. Recommended Viewing Distance: 11m.
6. Cabinet Material: Aluminum Cabinet, 7.8kg/㎡ Weight
7. Quality Certificate:CE, RoHS,FCC, ETL
8. Quick Installation: Yes, can be hung from the ceiling or mount to
the wall
9. Warranty: 2 years
Specification
Product Parameters |
| Mode | P10.42-10.42mm |
| LEDs | 1R1G1B |
| LED type | SMD2727 |
| Pixel pitch | 10.42-10.42mm |
| Unit size | W1000×H500mm(W1000×H1000mm) |
| Unit resolution | 95×47 dots |
| Resolution | 4,465dots/㎡ |
| Unit direction | Vertical Horizontal |
| Brightness | 6000nit |
| Weight | 7.8KG/㎡ |
| Max consumption | ≤800W/㎡ |
| Adv consumption | ≤260W/㎡ |
| Viewing angle | H120°/V120° |
| Protection level | IP65 |
| Thickness | 82mm |
Heat dissipation | Convective heat dissipation |
| Power supply | Power supply with PFC |
| Installation | Fast install |
| Service | Front&Back |
| Control mode | steady state |
| Color temperature | 3200-9300K |
| Refresh rate | 3840Hz |
| Working temperature | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ |
| Life time | ≥100,000 hours |
| Input voltage | AC110-220V, 50~60Hz |
| Grey grade | 16bit |
Features:
1. Stable Screen Performance: Excellent heat dissipation, eliminating the need for traditional
cooling systems and air conditioning, resulting in 38% energy
savings compared to conventional LED screens.
2. Light Penetration and Ventilation: Does not obstruct natural light or visibility, with an indoor
P3.91 transparency of 65%.
3. High Refresh Rate: 3840Hz, ideal for stage applications, providing superior image quality.
4. Impact-Resistant Design: The mask features an impact-resistant design, protecting the LED
beads from accidental damage while enhancing the overall display
performance.
5. Wide Viewing Angle: Stable brightness and clear, vivid images ensure that the display
is easily viewable from any angle.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the service work?
A: We have experienced Engineers who worked in the industry for 15
years and able to communicate with fluent English. They can
remotely provide technical support via video conference or
teamviewer or go to the site for the guidance.
Q2. What installation options do we have?
A: Wall mounting with metal structures or hanging from ceiling
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all LEDs, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
