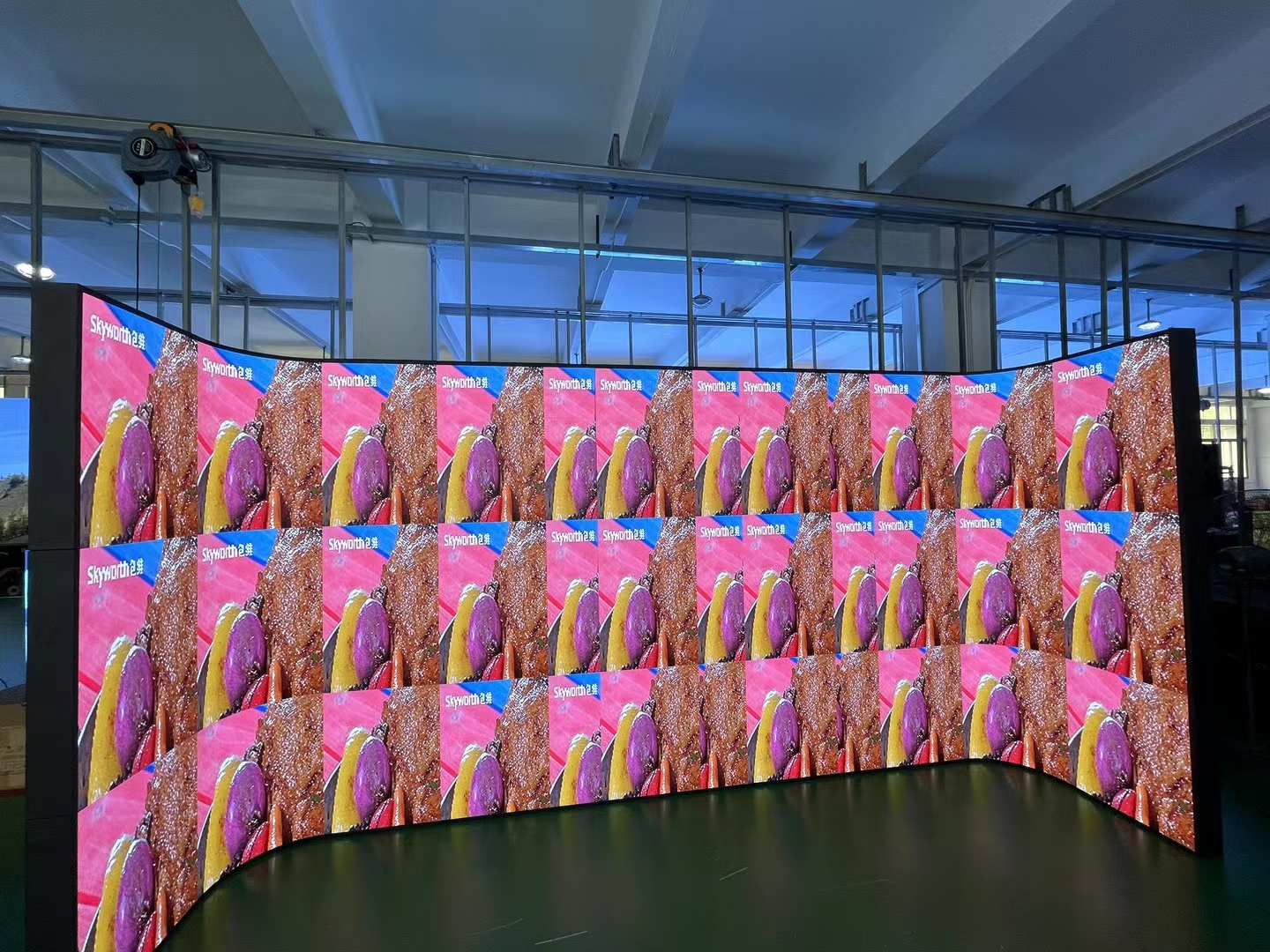

Indoor Flexible LED Screen P1.25mm 320x160mm Module Creative LED
Display Refresh Rate 3840Hz
Indoor P1.25 Flexible LED Screen Specifications
| Mini 1.25 |
| Pixel Pitch | 1.25mm |
| Pixel Configuration | SMD1010 |
| Pixel Density | 640,000 pixels/m2 |
| Module Dimensions(W x H) (mm) | 256 x 128 |
| Module Resolution | 177 x 88 |
| Weight per Module | 0.3kg |
| Maximum Power Consumption of Module | ≤20W |
| Brightness | 650 nits |
| Refresh Rate | 3,840Hz |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front and rear |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/48 Scan |
| Power Supply Method | 5V/40A 5V/60A |
| Optimal Viewing Distance | 1-12m |
.
Quick detail Of Indoor Flexible LED Screen
1. Pixel Pitch: 1.25mm
2. Module Thickness: 7.4mm
3.Nation Star or Kinglight SMD LEDs, high contrast and high
reliability
4.Greyscale: 16bits
5. Module size: 320x160mm
6. Service type: Magnetic front service
7. PSU: MEANWELL or G energy brand
8. Ingress Rate: IP43 indoor use and magnetic front service
9. Quality Certificate:CE, RoHS,FCC, ETL
10. Ambient Temperature: Storage: -35°C to +85°C; Operating: -20°C to
+50°C
Soft Film Modules in Creative Projects: Advantages
1. Lightweight and Flexible: Soft film modules are significantly
lighter and more flexible than traditional LED panels, allowing for
innovative shapes and installations that can adapt to various
environments and artistic visions.
2. Seamless Integration: The design of soft film modules enables
seamless integration into creative projects, making it easier to
create large, continuous displays or unique forms without visible
seams, enhancing visual appeal.
3. High Image Quality: These modules provide excellent image
quality with vibrant colors and high resolution, making them ideal
for artistic displays, exhibitions, and immersive environments
where visual impact is crucial.
4. Easy Installation and Maintenance: Soft film modules are
typically easier to install and maintain due to their lightweight
nature and flexible design. This reduces setup time and costs,
allowing for quicker project execution and adjustments as needed.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all LEDs, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
