Stadium Perimeter LED Display High Energy Efficiency and 1/3 Scale
Constant Current Drive Mode for Low-Cost Sports Venues
Stadium Perimeter LED Display is the standard configuration of
large sports events, widely used in football fields, basketball
courts, rugby fields and racing fields, etc., for real-time
broadcast and replay of the game, enhance the audience's watching
experience. At the same time, they also serve as interactive media,
as well as display advertising and branding, creating additional
commercial value for the event.
Parameters of Stadium Perimeter LED Display
| Item | P5 | P6 | P8 | P10 |
| Pixel Configuration | SMD3535 | SMD2727 | SMD3535 | SMD3535 |
| Pixel Pitch(mm) | 5 | 6.67 | 8 | 10 |
| Module Resolution(dots) | 64x32 | 48x24 | 40x20 | 32x16 |
| Panel Resolution(dots) | 192x192 | 144x144 | 120x120 | 96x96 |
| Pixel Density(dots /m²) | 10000 | 22477 | 15625 | 10000 |
| Module Size(L x W x H)/(mm) | 320x160 | 320x160 | 320x160 | 320x160 |
| Panel Size(L x W x H)/( mm) | 960x960 | 960x960 | 960x960 | 960x960 |
| Panel Material | Die-casting magnesium | Die-casting magnesium | Die-casting magnesium | Die-casting magnesium |
| Panel Weight(kg/panel) | 28.5 | 28.5 | 28.5 | 28.5 |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Driver Method | 1/8 | 1/6 | 1/5 | 1/2 |
| Brightness(nit) | ≥5500 | ≥5500 | ≥5500 | ≥6500 |
| Viewing Angle(H/V°) | 140/140 | 140/140 | 140/140 | 140/140 |
| AC Power Input(V) | AC220±10% | AC220±10% | AC220±10% | AC220±10% |
| Max. AC Power Input(W/m²) | 1000 | 1000 | 1000 | 1000 |
| Avg. AC Power Input(W/m²) | 300 | 300 | 300 | 300 |
| Storage Temperature(ºC) | -40~60 | -40~60 | -40~60 | -40~60 |
| Working Temperature(ºC) | -20~50 | -20~50 | -20~50 | -20~50 |
| IP Rating | IP40 for indoor | IP40 for indoor | IP40 for indoor | IP40 for indoor |
| Installation Types | Rear Installation | Rear Installation | Rear Installation | Rear Installation |
| Maintenance Types | Rear Maintenance | Rear Maintenance | Rear Maintenance | Rear Maintenance |
Features of Stadium Perimeter LED Display
1. Utral Light Weight Cabinet
LED display weighs only 28.5kg, is easy to transport, saves your
labor costs, and is lightweight, easy to install, assemble and
disassemble.
2. Exquisite Cabinet Design
LED display Product is Less weight led display with quick locks,
delicate structure for easy installation without gaps. Humanization
handlebar design make you more easy to move the cabinet.

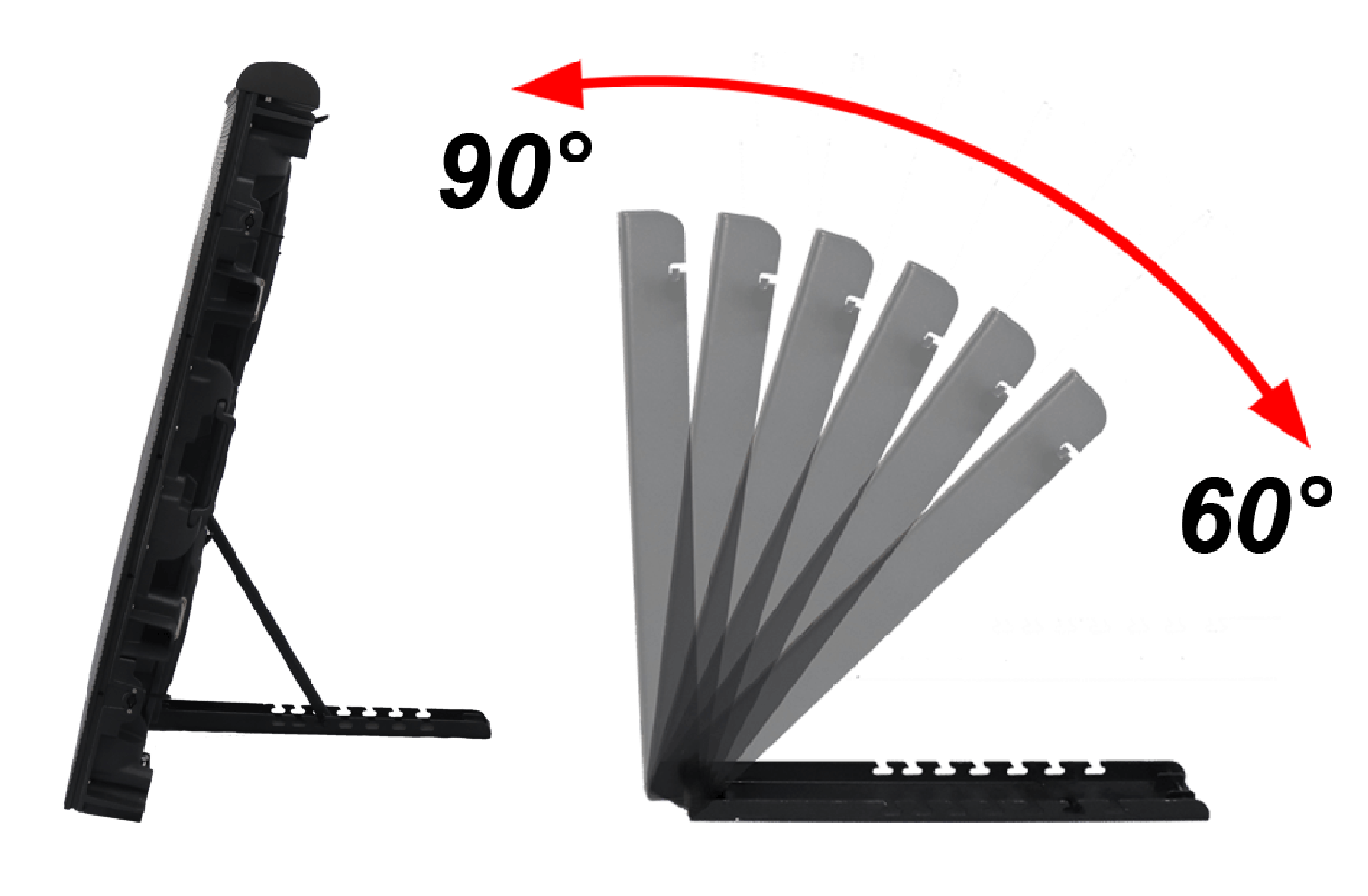

3. Independent Support Structure
There is an independent support structure that can be rotated and
adjusted, and it can still stand even when subjected to a strong
external impact. The installation angle of the cabinet can be
adjusted according to the actual site conditions, and the angle can
be flexibly changed. It supports 60 ° / 65 ° / 70 °/ 75 °/ 80 °/ 85
°/ 90 ° multi-angle adjustment.
4.Soft Mask Design
The top of the cabinet is fitted with a crash beam made of sponge,
to avoid or reduce as much as possible the damage suffered by
athletes when they accidentally hit the display.
Advantages of Stadium Perimeter LED Display
1. Enhance the spectator experience
Stadium Perimeter LED Display broadcasts and rebroadcasts matches
in real time, providing a high-quality visual experience. It can
also broadcast advertisements, event promotion and other content to
provide additional commercial value to the audience.
2. Provide an interactive medium
As an interactive medium, Stadium Perimeter LED Display can
increase the interest and participation of the event.
3. Ensure the safety of spectators and athletes
Stadium Perimeter LED Display acts as a barrier between the
audience and the pitch, which can prevent the audience from causing
conflicts due to emotion or other reasons. The fence can prevent
the players from going out of bounds during the running process and
ensure the safety of the players.
4. High security and stability
Stadium Perimeter LED Display products usually have high safety,
refresh rate and stability, and excellent water, dust and impact
resistance.
Applications of Stadium Perimeter LED Display
Stadium Perimeter LED Display is the standard configuration of
large sports events, widely used in football fields, basketball
courts, rugby fields and racing fields, etc., for real-time
broadcast and replay of the game, enhance the audience's watching
experience. At the same time, they also serve as interactive media,
as well as display advertising and branding, creating additional
commercial value for the event.
