500x500mm P2.604mm Indoor Rental LED Screen 8kg/panel with 3840Hz
Refresh Rate
Indoor P2.604mm 500x500mm Cabinet Stage Rental LED Display Specification:
| Pixel Pitch | 2.5mm | 2.604mm |
| Pixel Configuration | SMD1515 | SMD1515 |
| Pixel Density | 160,000 pixels/m2 | 147,456 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 84.5 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 |
| Module Resolution | 100x100 | 96 x 96 |
| Cabinet Resolution | 192x192 | 192 x 192 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg |
| Digital Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 10,000 : 1 | 10,000 : 1 |
| Average Power Consumption | 200-300 W /Sqm | 200-300 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm |
| Brightness | >800 nits | >800 nits |
| Refresh Rate | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/rear | Front/rear |
| IP Rating (Front/Rear) | IP 31 | IP 31 |
| Operating Temp/Humidity | -20ºC - 60ºC / 10% - 85% | -20ºC - 60ºC / 10% - 85% |
| Storage Temp/Humidity | -20ºC - 60ºC / 10% - 85% | -20ºC - 60ºC / 10% - 85% |
| Scan Method | 1/25 Scan | 1/32 Scan |
Indoor P2.604mm 500x500mm Cabinet Stage Rental LED Display Quick Details:
1. Pixel Pitch: 2.604mm
2. Quality and High Contrast SMD LEDs
3. Brightness:>800cd/sqm
4. Cabinet size: 500x500mm Die Cast Aluminum
5. Wide viewing angle: 160°/ 160°
6. Recommended Viewing Distance: 2-4m.
7. Greyscale: 16bits with NOVA Star MRV328
8. Cabinet Material: Die-cast aluminum cabinet, 500×500mm, with a weight of 8kg.
9. Refresh Rate: 3840Hz
10. Ingress Rate: IP31 Indoor
11.Quality Certificate: CE, RoHS,FCC, ETL
12. Curve Installation: Yes, Concave and Convex Available
13. Corner Protector: Available
Indoor P2.604mm 500x500mm Cabinet Stage Rental LED Display Features:
1. Die-Cast Aluminum Cabinet Structure
The cabinet is made from die-cast aluminum for durability and
lightweight performance. CNC high-precision processing ensures a
flatness of ≤0.1mm, minimizing visual distortions. This precision
enhances the quality of the displayed images
2. Front and Rear Maintenance
The design allows easy access for maintenance from both the front
and rear. Buckle locks simplify the assembly and disassembly of the
power box. This feature is ideal for quick setups in rental
applications.
3. Plug and Play with Hot-Swapping
The system supports plug-and-play functionality for quick
installations. Hot-swapping allows components to be replaced
without shutting down the display. The HUB connection integrates an
efficient power box for streamlined connectivity.
4. 160° Super Wide Viewing Angle
Offering a viewing angle of 160°, the display ensures clear images
from any position. This feature enhances the viewing experience for
large audiences. It’s perfect for events and exhibitions where
visibility is key.

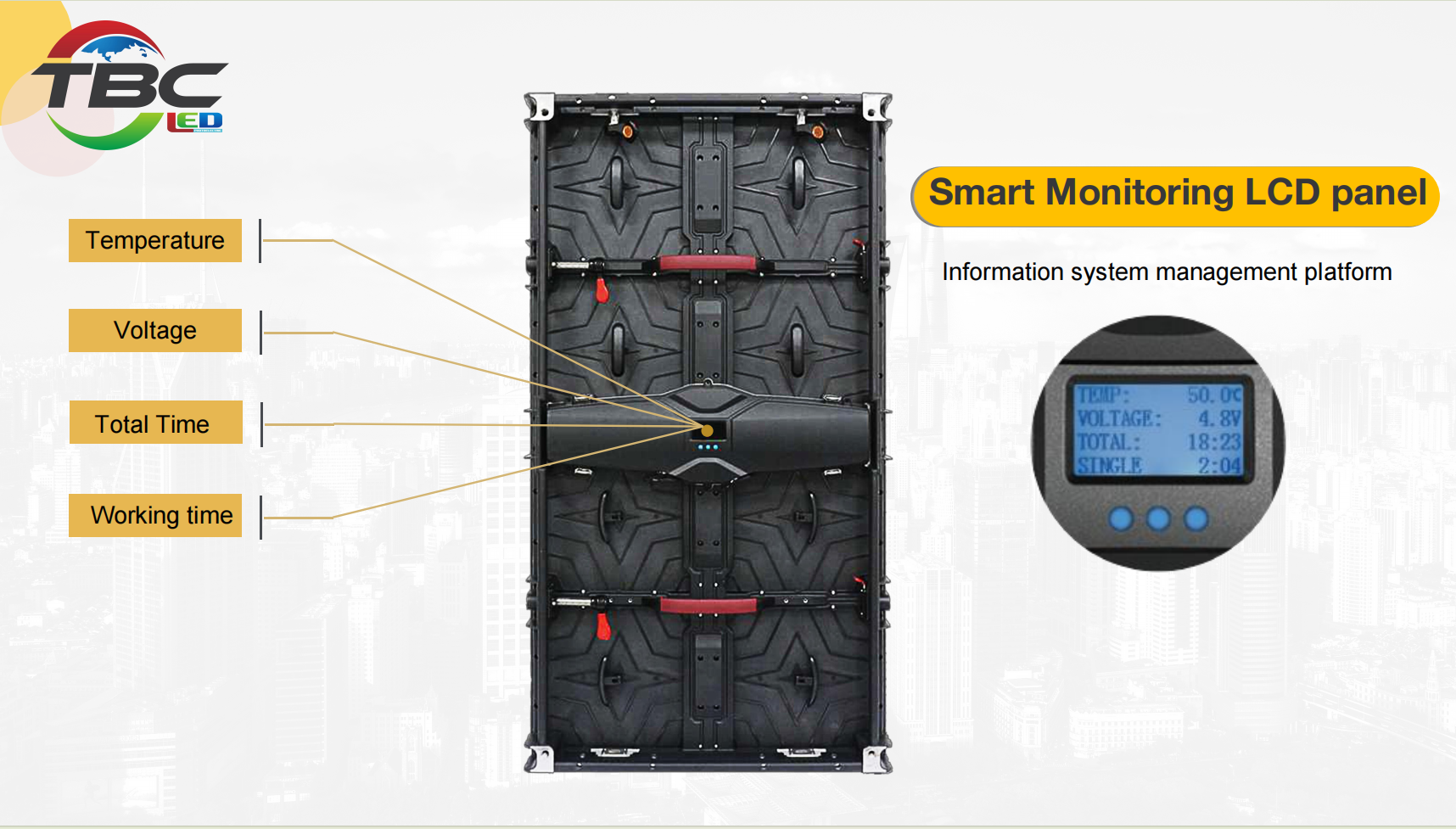

5. Smart Monitoring LCD Panel
The smart monitoring LCD panel provides real-time performance data.
It displays important metrics like temperature, voltage, and
operational time. This functionality helps in proactive maintenance
and optimal display performance.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
