Indoor P2.5mm Stage Rental LED Display 500x500mm Cabinet with
3840Hz Refresh Rate
Indoor P2.5mm 500x500mm Cabinet Stage Rental LED Display Specification:
| Pixel Pitch | 2.5mm | 2.604mm |
| Pixel Configuration | SMD1515 | SMD1515 |
| Pixel Density | 160,000 pixels/m2 | 147,456 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 84.5 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 |
| Module Resolution | 100x100 | 96 x 96 |
| Cabinet Resolution | 192x192 | 192 x 192 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg |
| Digital Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 10,000 : 1 | 10,000 : 1 |
| Average Power Consumption | 200-300 W /Sqm | 200-300 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm |
| Brightness | >800 nits | >800 nits |
| Refresh Rate | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/rear | Front/rear |
| IP Rating (Front/Rear) | IP 31 | IP 31 |
| Operating Temp/Humidity | -20ºC - 60ºC / 10% - 85% | -20ºC - 60ºC / 10% - 85% |
| Storage Temp/Humidity | -20ºC - 60ºC / 10% - 85% | -20ºC - 60ºC / 10% - 85% |
| Scan Method | 1/25 Scan | 1/32 Scan |
Indoor P2.5mm 500x500mm Cabinet Stage Rental LED Display Quick Details:
1. Pixel Pitch: 2.5mm
2. Quality and High Contrast SMD LEDs
3. Brightness:>800cd/sqm
4. Cabinet size: 500x500mm
5. Module Size: 250*250mm
6. Cabinet Material: Die-casting Aluminum
7. Refresh Rate: 3840Hz
8. Greyscale: 16bits with NOVA Star MRV328
9. Protection level: IP31 Indoor
10. Wide viewing angle: 160°/ 160°
11. Recommended Viewing Distance: 2.5-4m.
12. Quality Certificate: CE, RoHS,FCC, ETL
13. Curve Installation: Yes, Concave and Convex Available
14. Corner Protector: Available
15. Warranty: 2 Years
16. Life span: 100,000hours
Indoor P2.5mm 500x500mm Cabinet Stage Rental LED Display Features:
1. Lightweight Design
Our LED panels are engineered for lightweight construction,
significantly reducing transportation and installation costs.
Multiple handles facilitate easier handling and setup, enhancing
operational efficiency. Integrated corner protection safeguards the
LEDs during transport, ensuring durability.
2. High Gray Scale
Featuring a high gray scale of 16 bits, our panels deliver
exceptional image quality with smooth color transitions. This
capability enhances visual clarity, making it ideal for high-end
applications. Users can expect vibrant, true-to-life displays that
captivate audiences.

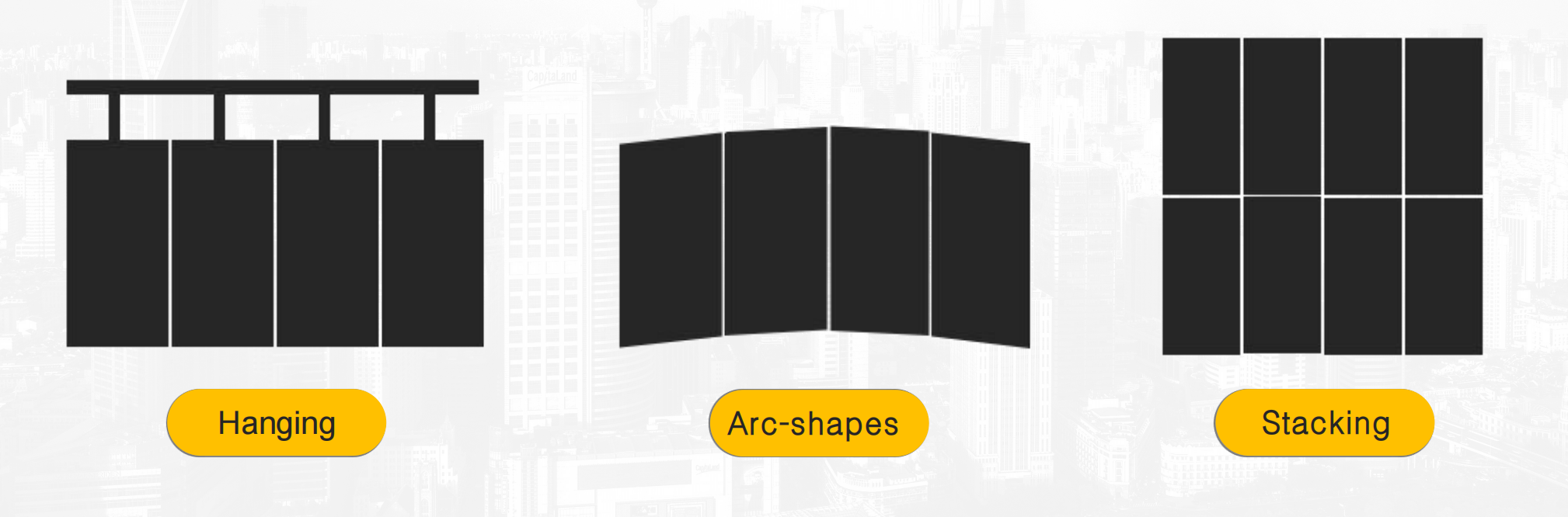

3. Versatile Installation Options
Designed for rental businesses, our LED panels offer flexible
installation methods, including hanging, arc, and stacking options.
They can be assembled in various standardized sizes to meet diverse
client needs. This versatility ensures quick adaptation to
different environments.
4. Precision Engineering
Our panels boast precision engineering with fast lock mechanisms
for swift assembly and disassembly. Position beads and grooves
ensure accurate alignment and stability during setup. This design
minimizes installation time while maximizing performance and
reliability.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
