    Front and Rear Service S Series P6.67 LED Advertising Display for Flexible and Convenient Maintenance

    Ask Lasest Price
    Brand Name : TBC LED
    Model Number : P6.67
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 sqm per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Front and Rear Service S Series P6.67 LED Advertising Display for Flexible and Convenient Maintenance

    Front and Rear Service S Series P6.67 LED Advertising Display for Flexible and Convenient Maintenance


    1. Outdoor S Series Specifications

    Product Unit Parameters

    Parameters

    ModeS6.67mmS8mmS10mm
    LEDs1R1G1B1R1G1B1R1G1B
    LED typeSMD2727SMD2727SMD2727
    Pixel pitch6.67mm8mm10mm
    Unit sizeW960×H960mmW960×H960mmW960×H960mm
    Unit resolution144×144 dots120×120 dots96×96 dots
    Resolution22,500dots/㎡12,625dots/㎡10,000dots/㎡
    Brightness≥6500nit≥7000nit≥7000nit
    Weight28KG/㎡28KG/㎡28KG/㎡
    Max consumption500W/㎡500W/㎡500W/㎡
    Adv consumption260W/㎡230W/㎡235W/㎡
    Viewing angleH120°/V120°H120°/V120°H120°/V120°
    Protection levelIP68IP68IP68
    Thickness82mm82mm82mm

    Heat dissipation


    Convective heat dissipationConvective heat dissipationConvective heat dissipation
    Wind dissipaionLevel 12Level 12Level 12
    Power supplyPower supply with PFCPower supply with PFCPower supply with PFC
    InstallationFast installFast installFast install
    Fire safety10S/unit10S/unit10S/unit
    Fire resistanceFull VO gradeFull VO gradeFull VO grade
    ServiceFront,BackFront,BackFront,Back
    Control modesteady statesteady statesteady state
    Color temperature3200-9300K3200-9300K3200-9300K
    Refresh rate60Hz60Hz60Hz
    Working temperature-40℃ to 70℃-40℃ to 70℃-40℃ to 70℃
    Storage temperature-55℃ to 120℃-55℃ to 120℃-55℃ to 120℃
    Life time≥100,000 hours≥100,000 hours≥100,000 hours
    Input voltageAC110-220VAC110-220VAC110-220V
    Grey grade16bit16bit16bit
    Seismic capability10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

    2. Outdoor S series Applications


    S series outdoor advertising LED display mainly used for big building, shopping mall, plaza, seaside etc, it is very suitable for naked-eye 3D outdoor LED screen.

    3. Features of S series P6.67


    ① High Brightness and Ultra-Thin Design

    The S series features a 960×960mm aluminum cabinet with a brightness of up to 10,000 nits. Die-cast aluminum modules achieve seamless splicing and high flatness. Each cabinet weighs only 27.5 kg and has a thickness of just 77 mm. The front and rear maintenance design facilitates labor-saving installation, allowing for quick assembly and disassembly of the LED panel.

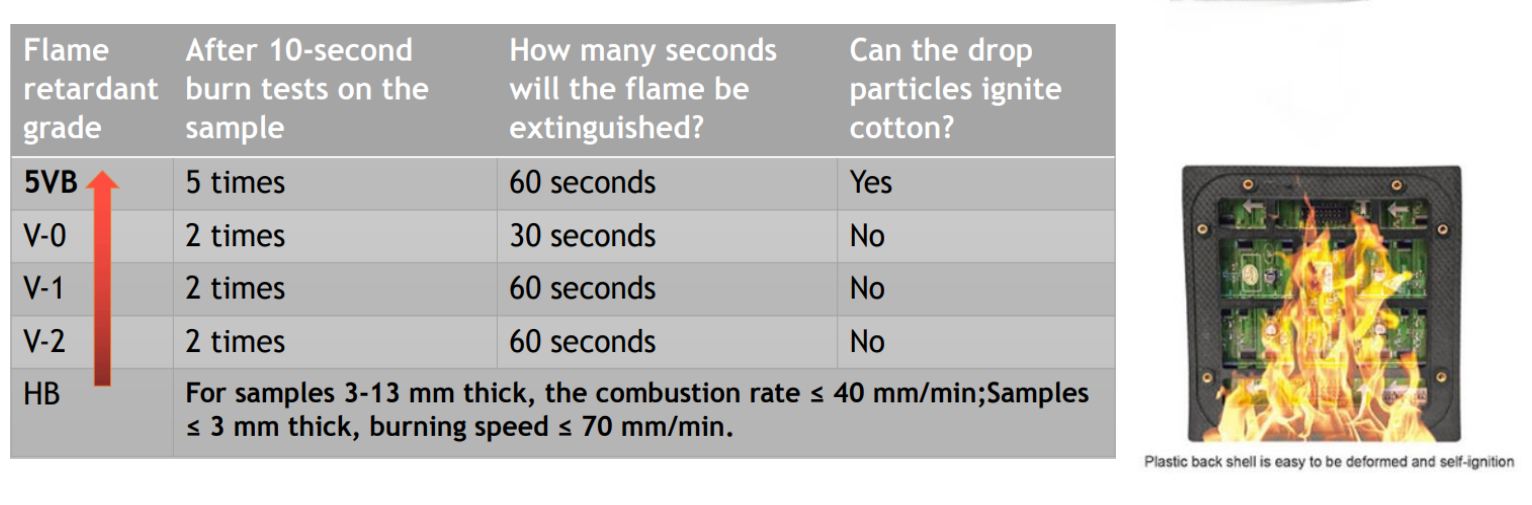

    ② Special Waterproof Design and High Fire Protection Rate

    The S series is suitable for use in extreme environments, achieving a 5VB fireproof rating. It offers excellent waterproofing and fireproofing capabilities, with an IP68 rating, making it a top-tier product in the industry.

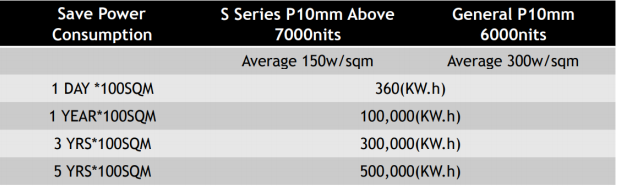

    ③ Energy Saving

    It is 50% more energy-efficient than other outdoor LED screens and has good heat dissipation, with a working temperature of only 39°C, compared to about 50°C for others.



    ④ Can Be Curved into 3D Screens

    The S series outdoor LED display panel can create seamless curved displays. The display has no gaps and excellent visual effects, with brightness ranging from 6500 nits to 10000 nits, and high-precision mask design ensures no color blocking.
