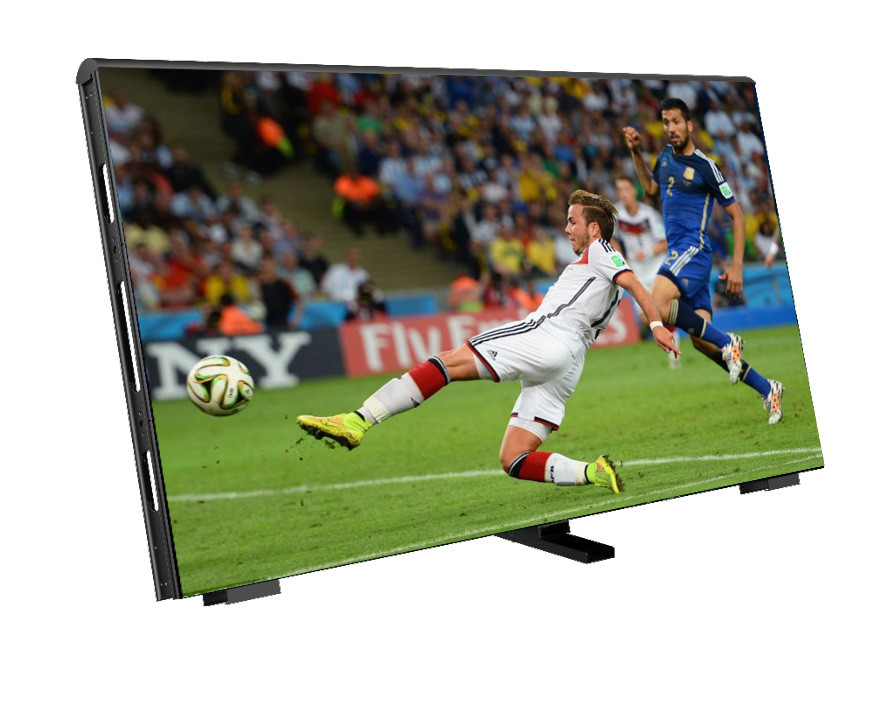

Stadium Perimeter LED Display with High Energy Efficiency and Flame
Retardant Level for Outdoor Sports Events
Parameters of Stadium Perimeter LED Display
| P6.25 | P8.33 | P10 |
| SMD type | SMD2727 | SMD2727 | SMD2727 |
| Physical density(dots/sqm) | 25600 | 14400 | 10000 |
| Module resolution | 64X48 | 48X36 | 40X30 |
| Module dimension | 400X300 | 400X300 | 400X300 |
| Module quantity(W×H) | 4 X 3 | 4 X 3 | 4 X 3 |
| Panel resolution(W×H) | 256 X 144 | 192 X 108 | 160 X 90 |
| Panel size(mm) | 1600 X 900 | 1600 X 900 | 1600 X 900 |
| Flatness(mm) | ≤0.015 | ≤0.015 | ≤0.015 |
| Maintenance mode | Front & Rear | Front & Rear | Front & Rear |
| Brightness(nits) | 7000 | 7000 | 7000 |
| Color temperature(K) | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional |
| Grey scale | 65536 | 65536 | 65536 |
| Viewing angle(V/H) | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 |
| Frame-changing frequently | 50/60Hz | 50/60Hz | 50/60Hz |
| Drive mode | Constant current 1/6 scale | Constant current 1/3 scale | Constant current 1/2 scale |
| Refresh rate | 3840 | 3840 | 3840 |
| Max power consumption(W/m2) | 600-800 | 600-800 | 600-800 |
| Avg. power consumption(W/m2) | 100-200 | 100-200 | 100-200 |
| Electric power requirements | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz |
Features of Stadium Perimeter LED Display
1. High refresh, low light and high gray, the selection of high
refresh rate display can ensure the smooth continuity of
large-scale sports events live picture, the human eye is more
comfortable and natural, meet the requirements of different
occasions live shooting, take pictures without water ripples.
2. Screen protection performance is high, for the stadium, LED
screen heat dissipation is very important. Especially in the
changeable climate of the outdoor screen, high flame retardant
level and protection level is necessary.
3. The overall brightness contrast and energy efficiency is high,
for the LED screen of the stadium, brightness, contrast, energy
saving effect need to be considered comprehensively, LED display
products with high energy efficiency design are guaranteed in
safety, stability and service life.
4. The viewing Angle is wide, which can ensure that the audience in
different directions of the stadium has a good viewing experience.
Advantages of Stadium Perimeter LED Display
1. Enhance the audience experience
Stadium Perimeter LED Display can display the game picture, player
data, tactical analysis and other content in real time to help the
audience understand the game more comprehensively. In addition,
Stadium Perimeter LED Display can also play video content such as
advertising and event promotion, providing sponsors with more
display space and increasing the commercial value of the game.
2. Enhance security
Stadium Perimeter LED Display can effectively block the ball from
flying out and prevent players or spectators from being injured.
Stadium Perimeter LED Display made of high-strength materials has
good impact resistance and can withstand intense movements and
collisions.
3. Energy saving and environmental protection
Compared with traditional projection equipment, Stadium Perimeter
LED Display has lower energy consumption, and does not produce too
much heat and noise. This not only helps to reduce energy
consumption and environmental pollution, but also reduces the
operating costs of the football stadium.
4. Adjustability and flexibility
Stadium Perimeter LED Display can be customized according to
different sites and needs, including height, material and color. In
this way, the requirements of different basketball courts can be
met to ensure the coordination and unity of the fence screen and
the surrounding environment.
Applications of Stadium Perimeter LED Display
Stadium Perimeter LED Display is widely used in football fields,
basketball courts, rugby fields and racing fields, etc., for
real-time broadcasting and replay of the game, enhancing the
audience's watching experience. At the same time, they also serve
as interactive media, as well as display advertising and branding,
creating additional commercial value for the event.
