Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module

Topbright Creation Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module from wholesalers

    Buy cheap Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module from wholesalers
    • Buy cheap Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module from wholesalers
    • Buy cheap Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module from wholesalers
    • Buy cheap Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module from wholesalers

    Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module

    Ask Lasest Price
    Brand Name : TBC LED
    Model Number : P10
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 sqm per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Premium Outdoor S Series P10 LED Advertising Display Front and Rear Maintenance 480×320 Module

    Front and Rear Service S Series P6.67 LED Advertising Display for Flexible and Convenient Maintenance


    1. Outdoor S Series Specifications

    Product Unit Parameters

    Parameters

    ModeS6.67mmS8mmS10mm
    LEDs1R1G1B1R1G1B1R1G1B
    LED typeSMD2727SMD2727SMD2727
    Pixel pitch6.67mm8mm10mm
    Unit sizeW960×H960mmW960×H960mmW960×H960mm
    Unit resolution144×144 dots120×120 dots96×96 dots
    Resolution22,500dots/㎡12,625dots/㎡10,000dots/㎡
    Brightness≥6500nit≥7000nit≥7000nit
    Weight28KG/㎡28KG/㎡28KG/㎡
    Max consumption500W/㎡500W/㎡500W/㎡
    Adv consumption260W/㎡230W/㎡235W/㎡
    Viewing angleH120°/V120°H120°/V120°H120°/V120°
    Protection levelIP68IP68IP68
    Thickness82mm82mm82mm

    Heat dissipation


    Convective heat dissipationConvective heat dissipationConvective heat dissipation
    Wind dissipaionLevel 12Level 12Level 12
    Power supplyPower supply with PFCPower supply with PFCPower supply with PFC
    InstallationFast installFast installFast install
    Fire safety10S/unit10S/unit10S/unit
    Fire resistanceFull VO gradeFull VO gradeFull VO grade
    ServiceFront,BackFront,BackFront,Back
    Control modesteady statesteady statesteady state
    Color temperature3200-9300K3200-9300K3200-9300K
    Refresh rate60Hz60Hz60Hz
    Working temperature-40℃ to 70℃-40℃ to 70℃-40℃ to 70℃
    Storage temperature-55℃ to 120℃-55℃ to 120℃-55℃ to 120℃
    Life time≥100,000 hours≥100,000 hours≥100,000 hours
    Input voltageAC110-220VAC110-220VAC110-220V
    Grey grade16bit16bit16bit
    Seismic capability10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

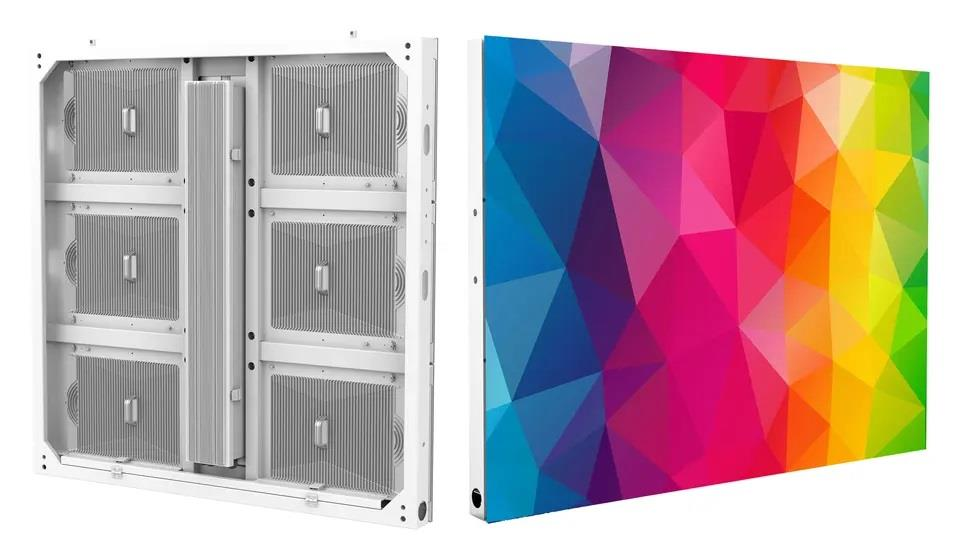

    2. Outdoor S Series P10 Product Details

    1. The cabinet is only 77 mm at its thinnest point and 95 mm at its thickest.
    2. Brightness can reach up to 10,000 nits.
    3. Module size is 480x320 mm, allowing flexible combinations for custom sizes; standard cabinet size is 960x960 mm.
    4. The cabinet is made of die-cast aluminum, making it lightweight and slim, with the 960x960 mm cabinet weighing 27.5 kg.
    5. Fire rating: 5VB.
    6. IP rating: 68.

    3. Features of S series P10


    ①High-brightness Nationstar SMD3535 LEDs deliver up to 10,000 nits, ensuring optimal visibility even in direct sunlight. 10000 NITS is the highest brightness available on the LED display market. Your led display will stay bright for a longer period of time.



    ②Safety Harness Design

    Cable-less Design: Power and data cables are concealed at the bottom of the panel.
    Hard Connection: BTB connectors replace traditional data and power cables for enhanced stability.
    Safety Harness: Each LED module features a safety harness to prevent accidental falls and protect users.



    Dual Service with Frontal and Real Maintenance

    Dual service mode of front and rear design to save you Maintenance Cost. The LED panel can be assemble and disassemble easily and quickly.

    Excellent Heat Dissipation

    Operating temperature range: -40 to +80°C. The aluminum frame ensures effective heat dissipation, eliminating the need for additional air conditioning, saving time, effort, and costs.
